KIT INCLUDES:

Arduino uno with USB cable – 1
HC-SR04 ultrasonic sensor -1
16×2 LCD Display – 1
DS18B20 temperature sensor – 1
10k potentiometer – 1
Push button – 1
Buzzer B10 – 1
3 LEDs ( R,Y,G)- 2 pieces each
Jumper wires male to female – 40 piece
Jumper wires Male to male – 40 piece

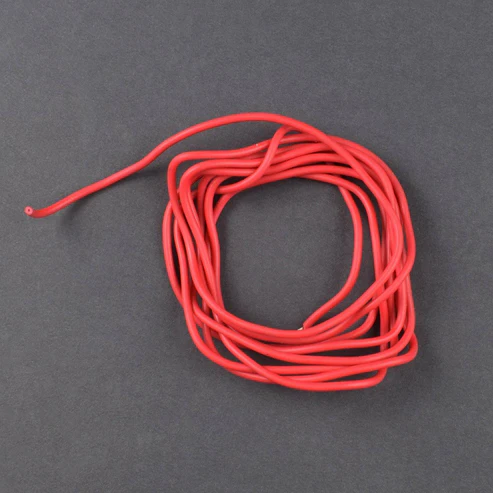

Single stand wire 2mt – 1
Resistor (220 ohm-4, 4.7k ohm-2)

HARDWARE REQUIRED

Arduino uno with USB cable – 1
HC-SR04 ultrasonic sensor -1
16×2 LCD Display – 1
DS18B20 temperature sensor – 1
10k potentiometer – 1
Push button – 1
Buzzer B10 – 1
3 LEDs ( R,Y,G)- 2 pieces each
Jumper wires male to female – 40 piece
Jumper wires Male to male – 40 piece
Single stand wire 2mt – 1
Resistor (220 ohm-4, 4.7k ohm-2)

SOFTWARE REQUIRED

Arduino IDE 1.8.5 (programmable platform for Arduino)

Click To Download: https://www.arduino.cc/en/Main/Software

SPECIFICATIONS

DS18B20 DIGITAL TEMPERATURE SENSOR

This is a waterproofed version of the DS18B20 Arduino Temperature sensor. Handy for when you need to measure something far away, or in wet conditions. While the sensor is good up to 125℃ the cable is jacketed in PVC so we suggest keeping it under 100℃. Because they are digital, you don’t get any signal degradation even over long distances! The DS18B20 provides 9 to 12-bit (configurable) temperature readings over a 1-Wire interface so that only one wire (and ground) needs to be connected from a central microprocessor. Usable with 3.0-5.5V systems.

Usable with 3.0V to 5.5V power/data
±0.5℃ Accuracy from -10℃ to +85℃
Usable temperature range: -55 to 125℃ (-67℉ to +257℉)
9 to 12-bit selectable resolution
Uses 1-Wire interface- requires only one digital pin for communication
Unique 64 bit ID burned into the chip
Multiple sensors can share one pin
Temperature-limit alarm system
Query time is less than 750ms
3 wires interface:

Red wire – VCC

Black wire – GND

Yellow wire – DATA

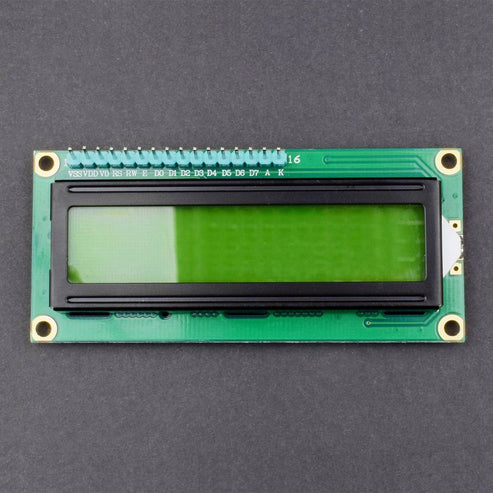

16*2 LCD DISPLAY

LCD Display Mode: STN, Positive, Transflective
Display Color: Deep Blue/ Yellow Green
Viewing Angle: 6H
Driving Method : 1/16 duty, 1/5 bias
Back Light : Yellow-Green LED backlight
Outline Dimension: 803615.8 MAX

PIN DESCRIPTION

**.16*2 LCD DISPLAY**

Symbol	External Connection	Function
VSS	Power Supply	Signal GROUND for lcm
VDD		POWER SUPPLY for logic lcm
V0		Contrast Adjust
RS	MPU	Register Select Signal
RW	MPU	Read/Write Select Signal
E	MPU	Operation Enable Signal
DB0~DB3	MPU	Four Low order bidirectional three state bus lines. Used for data transfer between the MPU and LCM. These four are not used between 4 Bit operations.
DB4~DB7	MPU	Four high order bidirectional Three state bus lines used for data transfer between the MPU
A	LED BKL power Supply	Power Supply for BKL
K	LED BKL power Supply	Power Supply for BKL

NOTE

Color tone may slightly change by Temperature and Driving Condition.
The Color is defined as the inactive/background color

.

CIRCUIT CONNECTION

Connect DS18B20 ground to negative rail and positive to the positive rail and out pin to D6 via4.7k resistor through the 5v pin.

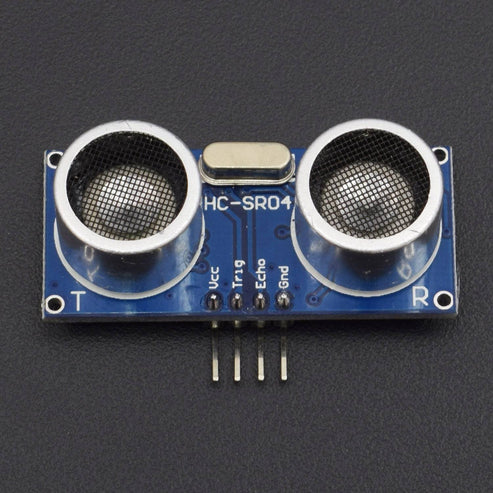

Connect ultrasonic sensor’s Vcc to positive rail on the breadboard, ground to the negative rail, echo to D7 and trigger to D9 of Arduino UNO.
All LEDs negative connects to negative rail and green led positive to D13 via 220-ohm resistor, yellow positive to D8 via 220-ohm resistor and red positive to D10 via 220-ohm resistor
Connect Buzzer’s positive to the positive rail and negative to the negative rail
Connect Push button’s one point to the ground and other to pin 16 of LCD.
Connect10k pot-positive to the positive rail, negative to negative rail and signal pin to PIN 3 of LCD.
Pin 1 of LCD to ground, pin 2 to 5v, pin 4 to D12, pin 5 to ground, pin 6 to D11, pin 11 to D5, pin 12 to D4, pin 13 to D3 and pin 14 to D2, pin 15 to 5v rail.
Connect 5v and ground of UNO to breadboard positive and negative rail.

CODE

https://docs.google.com/document/d/e/2PACX-1vTkxWEP8RTl32Pg0SNHAzajRMeCM6xsG7Iv6g6rNefoUkb_uhqs1eyioZINyAZTZ8MYPnG6Y4NdYvU7/pub

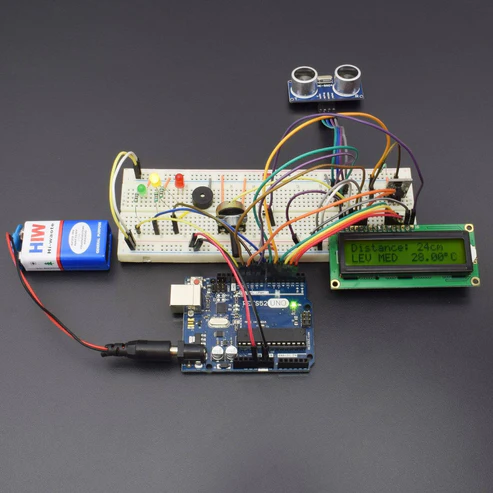

WORKING

This project gives me the info I need about the water level in a water tank. When the level is low, the green LED is ON. When the level is medium, the yellow LED is ON. When the level is HIGH the red LED blinks at the same time with the buzzer sound. The distance from the sensor to water level is measured by the ultrasonic sensor and is printed to the LCD together with the temperature in that tank.The temperature is measured by the DS18B20 sensor
