make a project using 10 segment LED bar graph scrolling using arduino uno

Category: Arduino Compatible Kits Tags: 10 segment LED bar graph, Arduino Uno

KIT INCLUDES

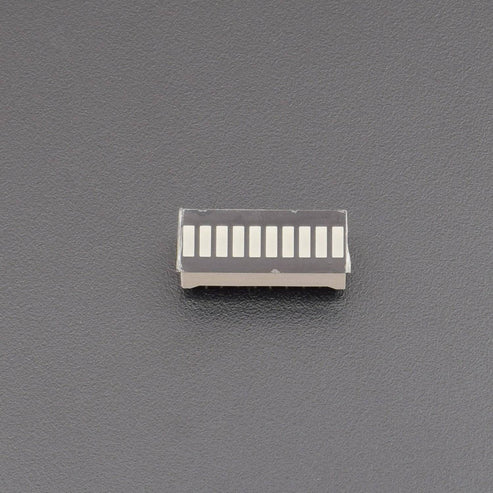

10 segment led bar graph-1

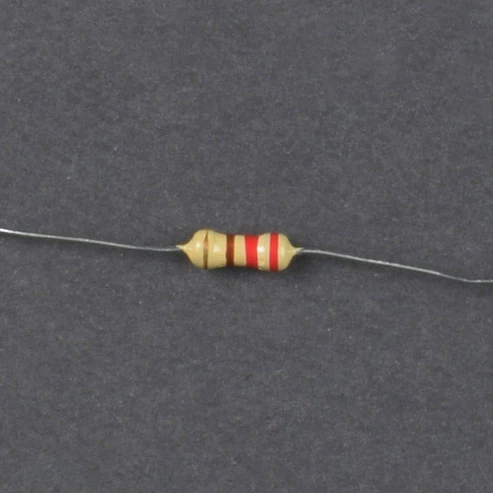

220 ohm resistor-12

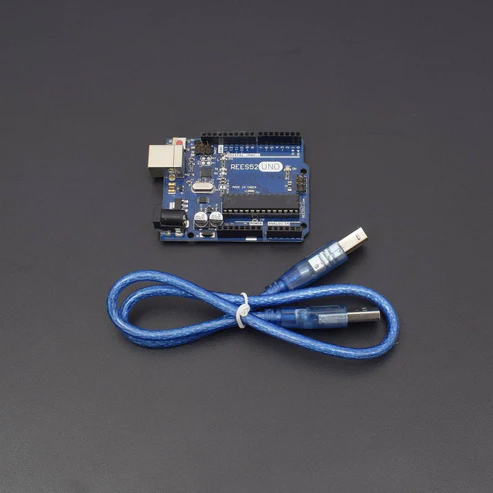

Arduino with USB cable -1

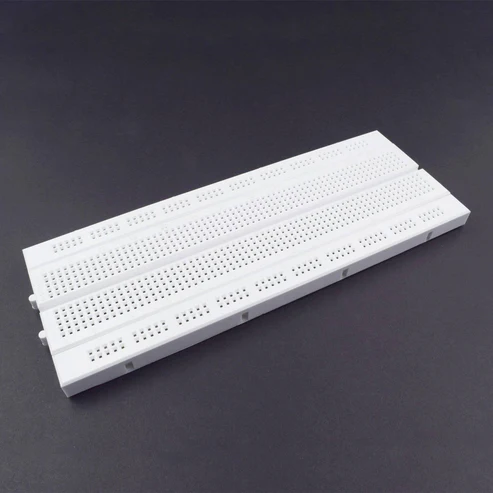

Breadboard 840 points -1

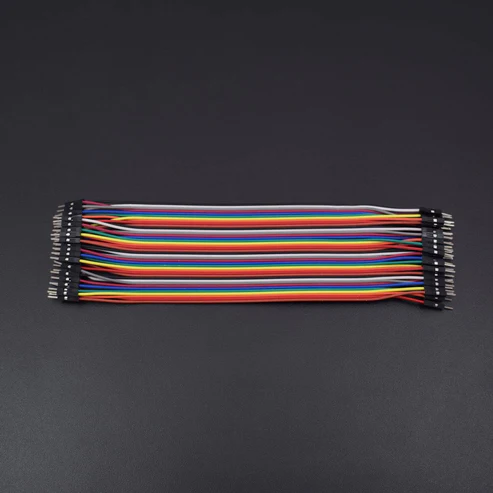

jumper wires(male to male) – 40 pieces

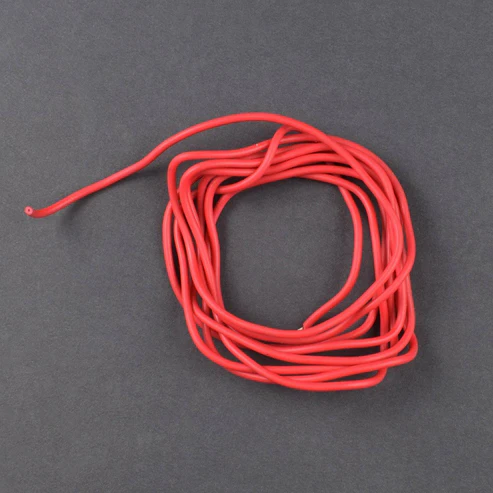

Single stand wire 2mt – 1

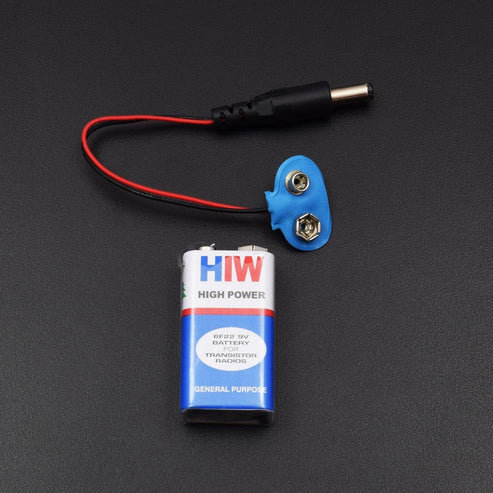

9v battery with DC jack – 1

HARDWARE REQUIRED

10 segment led bar graph-1
220 ohm resistor-12
Arduino with USB cable -1
Breadboard 840 points -1
jumper wires(male to male) – 40 pieces
Single stand wire 2mt – 1
9v battery with DC jack – 1

SOFTWARE REQUIRED

Arduino IDE 1.8.5 (programmable platform for Arduino)

Click To Download :https://www.arduino.cc/en/Main/Software

SPECIFICATIONS

.10 SEGMENT LED

10 Separately Controlled LED’s
High Brightness
High Intensity Green Output
Ideal for Audio and Meter Displays
Economically Priced
Easy to Mount
RoHS Compliant

Display

LED Size: 2 x 5 mm

Material: GaAlAs

Emitted Color: Green

Peak Wavelength: 660 nm

Absolute Maximum Ratings

Power Dissipation (Pd): 65 * 10 mw

Forward Current (If): 25 mA

Peak Forward Current (Ifp): 250 mA

Electro-Optical Data (@ 10 mA)

Forward Voltage – Typical: 1.85 V

Forward Voltage – Maximum: 2.2 V

Luminous Intensity Typical: 120 Mcd

CIRCUIT CONNECTION

Led Bar Graph of Pin 11,12,13,14,15,16,17,18,19 and 20 all are connect to series(all negative pin of Led bar graph) then pin no 20 of led bar graph is Connect to GND of Arduino.
Pin 1,2,3,4,5,6,7,8,9 and 10 are connect to 220 ohm resistor then connect to arduino with following order.

Led bar graph	Arduino uno
Pin 1	Pin 13
Pin 2	Pin 12
Pin 3	Pin 11
Pin 4	Pin 10
Pin 5	Pin 9
Pin 6	Pin 6
Pin 7	Pin 5
Pin 8	Pin 4
Pin 9	Pin 3
Pin 10	Pin 2

CODE

https://docs.google.com/document/d/e/2PACX-1vTuzJjPphssgiRnDspoJ5yk_4YEUOT9eoPZLwN6sBo8HRgORosJowtvc16jsKHq-4C1tkZUYeHXqAAO/pub

Battery operated	Yes , 1 nos 9V battery included
