Make A Home Automation System Using TTP223B Touch Sensor and Single Channel 5v Relay Module Interfacing with Arduino Uno

Name: Make A Home Automation System Using TTP223B Touch Sensor and Single Channel 5v Relay Module Interfacing with Arduino Uno
Brand: Robokreeda
SKU: 3434
Price: 1237.82 INR
Availability: InStock
Rating: 5 (1 reviews)

Category: Arduino Compatible Kits Tags: Arduino Uno, Home Automation System, Single Channel 5v Relay Module, TTP223B Touch Sensor

Description
Reviews (0)

KIT INCLUDES:

HARDWARE REQUIRED

SOFTWARE REQUIERD

Arduino IDE 1.8.5 (programmable platform for Arduino)

Click To Download :https://www.arduino.cc/en/Main/Software

SPECIFICATIONS

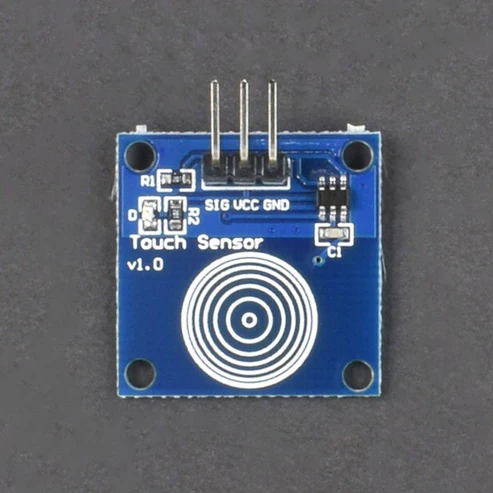

TTP223B CAPACITIVE TOUCH SENSOR

The TTP223 is a touch pad detector IC which offers 1 touch key. The touching detection IC is designed for replacing traditional direct button key with diverse pad size. Low power consumption and wide operating voltage are the contact key features for DC or AC application.

Operating voltage 2.0V~5.5V
Operating current @VDD=3V, no load, SLRFTB=1, At low power mode typical 1.5uA, maximum 3.0uA and at fast mode typical 3.5uA, maximum 7.0uA
Operating current @VDD=3V, no load, SLRFTB=0, At low power mode typical 2.0uA, maximum 4.0uA and at fast mode typical 6.5uA, maximum 13.0uA
The response time max about 60mS at fast mode, 220mS at low power mode @VDD=3V
Provides Fast mode and Low Power mode selection by pad option (LPMB pin)Operating Temperature:-20 ~ +70 ℃

5V 1 CHANNEL RELAY MODULE

The module is uses SRD relay module to control high-voltage electrical devices. (maximum 250V).It can be used in interactive projects and can also be used to control the lighting, electrical and other equipment can be controlled directly by a wide range of microcontrollers and can be controlled through the digital IO port, such as solenoid valves, lamps, motors and other high current or high voltage devices.

Number of I/O Channels: 1
Type: Digital
Switching capacity available by 10A in spite of small size design for high-density P.C. board mounting technique.
Control signal: TTL level
Max. Allowable Voltage: 250VAC/110VDC
Max. Allowable Power Force: From C(800VAC/240W), From A(1200VA/300W)
UL, CUL,TUV recognized.
Indication LED for Relay’s Status

SPECIFICATIONS

TTP223B CAPACITIVE TOUCH SENSOR

CIRCUIT DESCRIPTION

SIG Pin of TTP223B connects to Arduino’s Digital Pin no. 9
VCC Pin of TTP223B connects to Arduino’s 5v pin
GND Pin of TTP223B connects to Arduino’s GND pin
5v relay module’s pin S to Arduino’s Digital Pin 2
VCC Pin of 5v Relay Module connects to Arduino’s 5v pin
GND Pin of 5v Relay Module connects to Arduino’s GND pin

CODE

WORKING

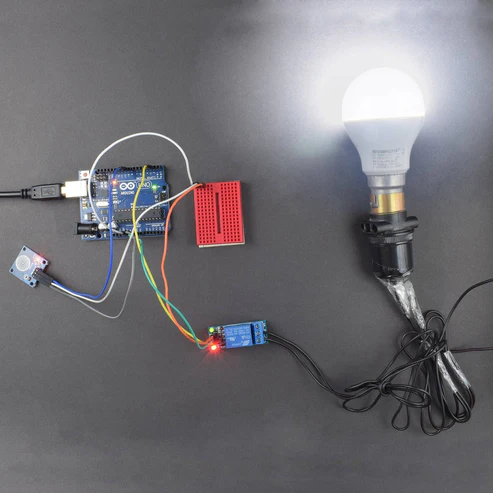

Touch the TTP223B WITH finger then Relay Module’s Green Light Will Turn On and Bulb too.

Then touch the sensor and Bulb will turn off.
