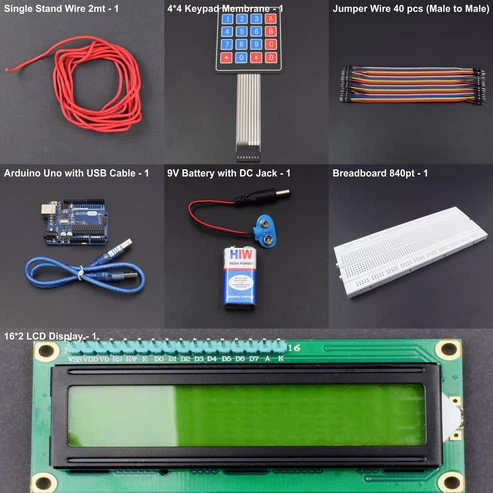

HARDWARE REQUIRED

4×4 keypad membrane -1

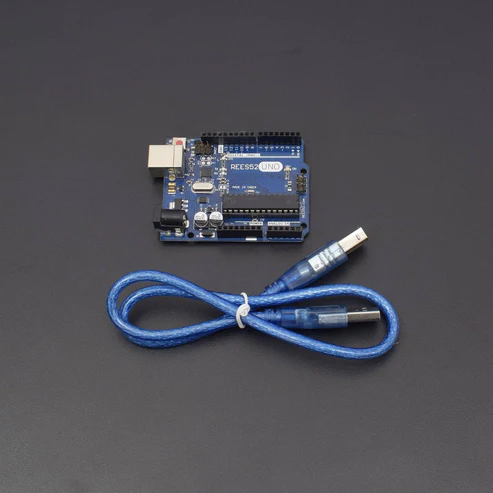

Arduino uno with USB cable – 1
16×2 LCD display -1
Jumper wires ( male to male) – 40 pieces
9V battery with DC Jack – 1
Breadboard 840 points – 1
Single stand wire 2mt– 1

SOFTWARE REQUIRED

Arduino IDE 1.8.5 (programmable platform for Arduino)

Click To Download :https://www.arduino.cc/en/Main/Software

SPECIFICATIONS

**4*4 KEYPAD MEMBRANE**

Maximum Rating: 24 VDC, 30 mA
Interface: 8-pin access to 4×4 matrix
Operating temperature: 32 to 122 °F(0 to 50°C)
Dimensions: Keypad, 2.7 x 3.0 in (6.9 x 7.6 cm),Cable: 0.78 x 3.5 in (2.0 x 8.8 cm)

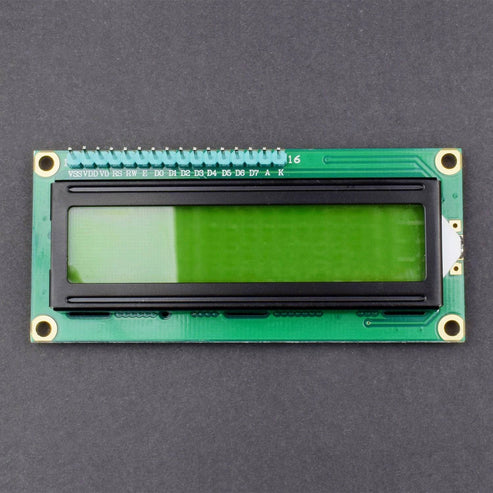

**16*2 LCD DISPLAY**

LCD Display Mode: STN, Positive, Transflective
Display Colour: Deep Blue/ Yellow Green
Viewing Angle: 6H
Driving Method: 1/16 duty, 1/5 bias
Back Light: Yellow-Green LED backlight
Outline Dimension: 803615.8 MAX

Note

Colour tone may slightly change by Temperature and Driving Condition.
The Colour is defined as the inactive/background colour

PIN DESCRIPTION

16*2 LCD DISPLAY

Symbol	External Connection	Function
VSS	Power Supply	Signal GROUND for lcm
VDD		POWER SUPPLY for logic lcm
V0		Contrast Adjust
RS	MPU	Register Select Signal
RW	MPU	Read/Write Select Signal
E	MPU	Operation Enable Signal
DB0~DB3	MPU	Four Low order bidirectional three state bus lines. Used for data transfer between the MPU and LCM. These four are not used between 4 Bit operations.
DB4~DB7	MPU	Four high order bidirectional Three state bus lines used for data transfer between the MPU
A	LED BKL power Supply	Power Supply for BKL
K	LED BKL power Supply	Power Supply for BKL

4*4 KEYPAD MEMBRANE

Matrix keypads use a combination of four rows and four columns to provide button states to the host device, typically a microcontroller. Underneath each key is a pushbutton, with one end connected to one row, and the other end connected to one column.

CIRCUIT CONNECTION

Keypad 1 to arduino D0
Keypad 2 to D1
Keypad 3 to D2
Keypad 4 to D3
Keypad 5 to D4
Keypad 6 to D5
Keypad 7 to D6
Keypad 8 to D7
Lcd pic 16 to negative rail and pin 15 to positive rail
Lcd pic D7 to D4 to arduino D13 to D10
Arduino 5V to positive rail and ground to negative rail
Arduino pin D8 to RS of lcd and D9 to pin 6 (E) of lcd
Lcd pin1 to ground, pin 2 to 5v , pin 3 to ground and pin 5 to ground

CODE

Programming is always fun and Arduino is a wonderful platform if you are just getting started with Embedded programming. In this, we will build our own calculator with Arduino. The values can be sent in through a keypad (4×4 keypad) and the result can be viewed on an LCD screen (16×2 Dot-matrix). This calculator could perform simple operations like Addition, Subtraction, Multiplication and Division with whole numbers.

The complete circuit diagram of this Arduino Calculator Project is given above. The +5V and ground connection shown in the circuit diagram can be obtained from the 5V and ground pin of the Arduino. The Arduino itself can be powered from your laptop or through the DC jack using a 12V adapter or 9V battery.

We are operating the LCD in 4-bit mode with Arduino so only the last four data bits of the LCD is connected to Arduino. The Keyboard will have 8 output pins which have to be connected from pin 0 to pin 7 as shown above. You can use the following connection to verify your connection with Arduino, you can also check 4×4 Keypad interfacing with Arduino.

“Some Arduino boards might show an error while uploading program if there is anything connected to pin 0 and pin1, so if you experience any just remove the keypad while uploading the program.

As told earlier we are going to interface an LCD and keypad with Arduino using libraries. So let’s add them to our Arduino IDE first. The library for LCD is already included in your Arduino by default so we need not worry about it. For Keypad library click on the link to download it from Github. You will get a ZIP file, then add this lib to Arduino by Sketch -> Include Library -> Add.ZIP file and point the location to this downloaded file. Once done we are all set for programming.

Even though we have used a library for using a keypad we have to mention few details (shown below) about the keypad to the Arduino. The variable ROWS and COLS will tell how many rows and columns our keypad has and the key map shows the order in which the keys are present on the keyboard

https://docs.google.com/document/d/e/2PACX-1vQIVFRbugqndpyFptAOfi3jq4QcujiIwD4UtCPS06Oz3mtt1HFbl9nZ2B642U1A8jrLpjQMi-OCs0ek/pub

WORKING

Make the connections as per circuit diagram and upload the code below. If it shows error make sure you have added the library as per the instruction is given below

Library Links:

https://www.arduino.cc/en/Reference/LiquidCrystal

https://github.com/Chris–A/Keypad

Arduino Calculator using 4×4 Keypad in action
Since the keypad used here does not have proper markings on it I have assumed the Alphabets to be operators as listed below.

Character on Keypad assumed to be

“D” Addition (+)

“A” Subtraction (-)

“B” Multiplication (*)

“C” Division (/)

“*” Clear (C)

“#” Equals (=)
