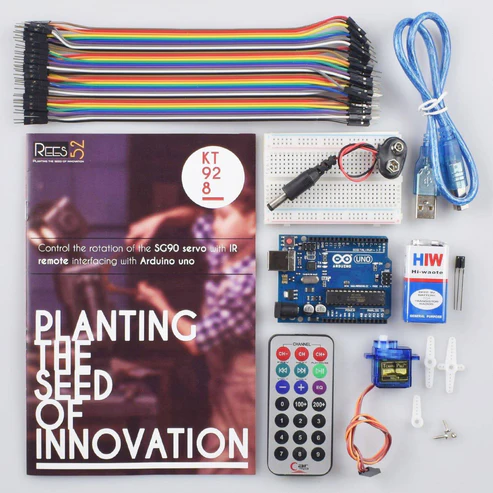

KIT INCLUDES

INTRODUCTION

In this project, we will control the rotation of the SG90 Servo Motor with the help of IR Remote.

HARDWARE REQUIRED

Name: Control the rotation of the SG90 servo with IR remote interfacing with Arduino uno
SKU: 3347
Price: 1062.00 INR
Availability: InStock

SOFTWARE REQUIRED

Arduino IDE 1.8.5 (programmable platform for Arduino)

Click To Download: https://www.arduino.cc/en/Main/Software

PIN DESCRIPTION

SG90 SERVO MOTOR

Connector	JR and FP connector
Cable Length	25 cm
Operating System	NO load ; : 0.12 sec / 60 degree (4.8V), 0.10 sec / 60 degree (6.0V)
Stall Torque (4.8 V)	1.6kg/cm
Temperature	-30~60’C
Dead band width	5 us
Working Voltage	3.5~6V
Dimension	1.26 in x 1.18 in x 0.47 in (3.2 cm x 3 cm x 1.2 cm)
Weight	4.73 oz (134 g)
Motor Type	3 pole

TSOP IR RECEIVER

An infrared receiver tuned to react only to IR of frequency 38 kHz. This IR sensor module consists of a PIN diode and a pre amplifier which are embedded into a single package. The output of TSOP is active low and it gives +5V in off state. When IR waves, from a source, with a center frequency of 38 kHz incident on it, its output goes low. It is perfect for making obstacle sensors and to accept signals from most IR remotes.

CIRCUIT DESCRIPTION

Servo positive to breadboard positive rail.
Servo ground to arduino ground.
Servo signal to arduino D9.
Arduino 5v to breadboard positive rail.
IR receiver Vout to D7 of arduino.
IR receiver ground to arduino ground.
IR receiver Vcc to breadboard positive rail.

CODE

Click to see the code or copy the link

https://docs.google.com/document/d/e/2PACX-1vS0FpG10l8oQ7kHUGnKlspomA7wpabXDwMDVwY6XMZvWIWup4X26Bj9sPXryD_B0Hg0O5adDzYQW501/pub

WORKING

To control a servo motor with remote control, this will give you a general concept on how to control remotely. You should know that the remote control sends Infrared (IR) signals, so we will learn how to receive and read these signals using Arduino.

We use arduino UNO to control the servo motor to make the functionality we want.

We use IR receiver to read IR signals from remote control.

Wiring IR receiver and servo motor is shown in pictures.

Follow the steps of wiring in the picture given above

Copy the library to Local Disk(C 🙂 > Program Files(x86) > Arduino > libraries

Open IR remote demo example from Arduino IDE as picture 1 then upload to arduino board.

Then open serial monitor and try to click on any button of remote control to send a signal to IR receiver, the HEX code of each button must appear in serial monitor as picture 2

Then detect the HEX code of the buttons using to control the servo motor, assume you will use two buttons of your choice, one for clockwise rotation and another for counter clockwise rotation.

For example, use (+) for clockwise and (-) for counterclockwise, so you have to get their HEX codes.

(+) —> A3C8EDDB

(-) —> F076C13B

After uploading the code open serial monitor and Take any remote you want to use or you want the codes off it and press any button.

Now, see in the serial monitor. You will see a code of the corresponding button you pressed. Copy the codes and paste it

In the final code, the functionality is when clicking at any of two buttons the motor is toggling between the rotation in main direction and stop so when first click at any of two buttons the motor will rotate in button’s direction, and when the second click at same button the motor will stop

We use arduino Uno to control the servo motor to make the functionality we want.

We use IR receiver to read IR signals from remote control.

Wiring IR receiver and servo motor is shown in circuit image.

Follow the steps of wiring in the picture given above. In the final code, the functionality is when clicking at any of two buttons the motor is toggling between the rotation in main direction and stop so when first click at any of two buttons the motor will rotate in button’s direction, and when second click at same button the motor will stop.
