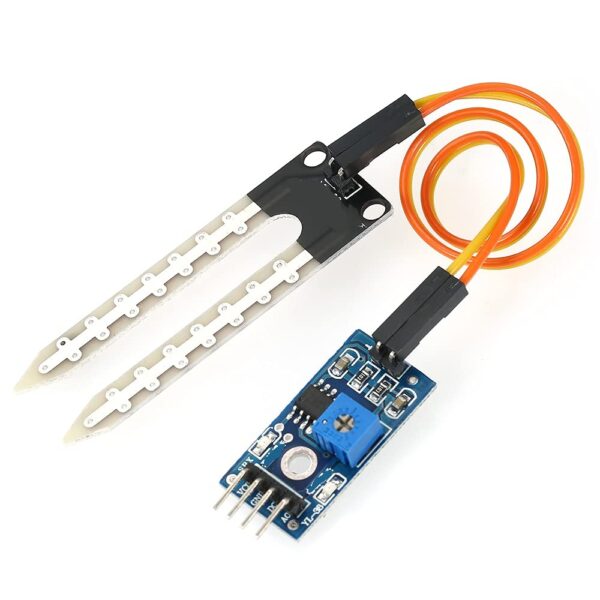

Robokreeda Soil Moisture Sensor Module (Capacitive + Analog/Digital Output)

Name: Robokreeda Soil Moisture Sensor Module (Capacitive + Analog/Digital Output)
SKU: RK29052
Availability: InStock

₹82.60

Accurate, corrosion-resistant soil moisture sensor – perfect for automatic plant watering systems, smart agriculture, Arduino/Raspberry Pi garden monitors, and IoT weather stations.

Key Features

Upgraded capacitive sensing (no corrosion unlike resistive versions)
Dual output:
- Analog (0–3 V) – proportional to moisture level
- Digital (High/Low) – adjustable threshold via onboard potentiometer
Wide voltage: 3.3 V – 5 V
On-board LM393 comparator + power/activity LEDs
Fully sealed probe with thick conformal coating – lasts years in soil
Low power consumption (< 10 mA)
Simple 3-pin interface (VCC, GND, AO/DO selectable via jumper)

SKU: RK29052 Category: Electronics Components

Description
Reviews (0)

Robokreeda Soil Moisture Sensor Module (Capacitive + Analog/Digital Output)

Accurate, corrosion-resistant soil moisture sensor – perfect for automatic plant watering systems, smart agriculture, Arduino/Raspberry Pi garden monitors, and IoT weather stations.

Key Features

Upgraded capacitive sensing (no corrosion unlike resistive versions)
Dual output:
- Analog (0–3 V) – proportional to moisture level
- Digital (High/Low) – adjustable threshold via onboard potentiometer
Wide voltage: 3.3 V – 5 V
On-board LM393 comparator + power/activity LEDs
Fully sealed probe with thick conformal coating – lasts years in soil
Low power consumption (< 10 mA)
Simple 3-pin interface (VCC, GND, AO/DO selectable via jumper)

Technical Specifications

Measuring Range: 0–100% (dry → fully wet)
Output Voltage: 0–3 V (analog)
Response Time: < 1 sec
Operating Temperature: -10°C to +60°C
Probe Length: 70 mm
Board Dimensions: 98 × 16 mm (with probe)

Applications

Automatic plant irrigation systems
Smart pots & greenhouse monitors
Arduino/ESP32/Raspberry Pi garden projects
Soil dryness alarms
Agricultural research & hydroponics

Package Includes

1 × Robokreeda Capacitive Soil Moisture Sensor Module
1 × 20 cm 3-pin Female-to-Female Dupont cable
1 × Jumper cap (for AO/DO selection)

Never over- or under-water your plants again — the Robokreeda Soil Moisture Sensor keeps your greens perfectly happy!
