Robokreeda MFRC522 RFID Reader/Writer Module + RFID Tag Kit (13.56 MHz)

Name: Robokreeda MFRC522 RFID Reader/Writer Module + RFID Tag Kit (13.56 MHz)
SKU: RK29071
Availability: InStock

₹501.50

Robokreeda MFRC522 RFID Reader/Writer Module + RFID Tag Kit (13.56 MHz)

Complete ready-to-use 13.56 MHz RFID kit — perfect for access control, attendance systems, inventory tracking, door locks, and Arduino/Raspberry Pi projects.

Key Features

Genuine NXP MFRC522 chip (high-performance RFID reader/writer)
Supports ISO/IEC 14443 Type A cards (MIFARE Classic 1K/4K, Ultralight, DESFire)
Reading distance: 0–50 mm (depending on tag)
SPI interface (up to 10 Mbps) — easy connection to any microcontroller
Operating voltage: 3.3 V (5 V tolerant pins)
On-board level shifter + voltage regulator
Two LED indicators (Power + Communication)
Compact size with mounting holes

SKU: RK29071 Category: Electronics Components

Description
Reviews (0)

Robokreeda MFRC522 RFID Reader/Writer Module + RFID Tag Kit (13.56 MHz)

Complete ready-to-use 13.56 MHz RFID kit — perfect for access control, attendance systems, inventory tracking, door locks, and Arduino/Raspberry Pi projects.

Key Features

Genuine NXP MFRC522 chip (high-performance RFID reader/writer)
Supports ISO/IEC 14443 Type A cards (MIFARE Classic 1K/4K, Ultralight, DESFire)
Reading distance: 0–50 mm (depending on tag)
SPI interface (up to 10 Mbps) — easy connection to any microcontroller
Operating voltage: 3.3 V (5 V tolerant pins)
On-board level shifter + voltage regulator
Two LED indicators (Power + Communication)
Compact size with mounting holes

Technical Specifications

Frequency: 13.56 MHz
Current: 13–26 mA (idle), < 80 mA (scanning)
Interface: SPI (SDA, SCK, MOSI, MISO, IRQ, RST) + 3.3 V, GND
Dimensions: 40 × 60 mm

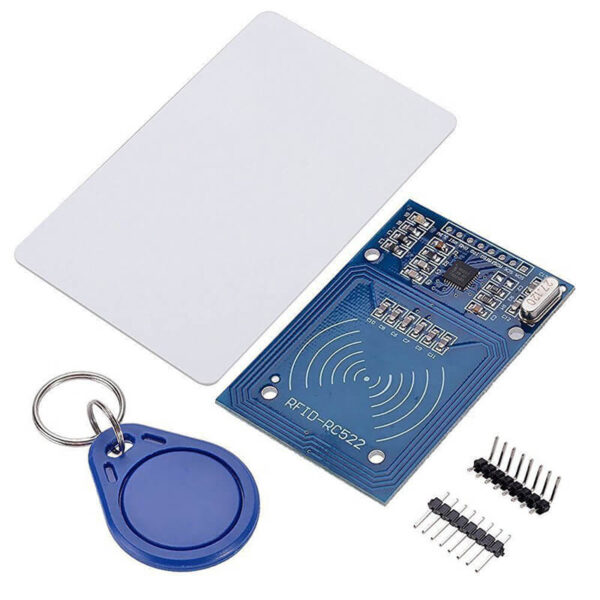

Package Includes

1 × Robokreeda MFRC522 RFID Module
1 × MIFARE Classic 1K white card (standard credit-card size)
1 × 8-pin straight header + 8-pin right-angle header (unsoldered)
1 × 20 cm 8-pin Dupont cable

Bonus Pre-loaded with Arduino “MFRC522” library examples (DumpInfo, Read/Write, Access Control)

Unlock the power of contactless identification — the Robokreeda MFRC522 RFID Kit is the fastest way to add secure RFID functionality to your next project!
