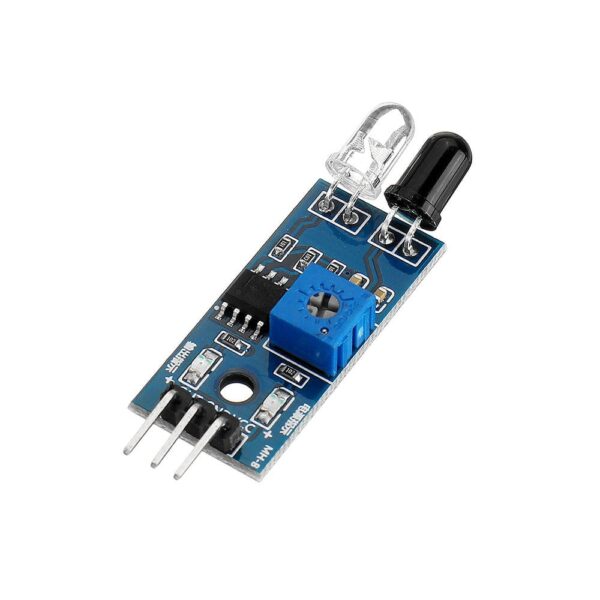

Robokreeda Infrared (IR) Obstacle Avoidance Sensor Module

Name: Robokreeda Infrared (IR) Obstacle Avoidance Sensor Module
SKU: RK29041
Availability: InStock

₹46.02

Highly responsive IR proximity sensor – perfect for line-following robots, edge detection, object counters, smart doors, and Arduino/Raspberry Pi/ESP32 obstacle-avoidance projects.

Key Features

Detects objects 2–30 cm away (adjustable via onboard potentiometer)
Dual output:
- Digital (High/Low) – clean TTL signal with onboard comparator
- Analog (0–5 V) – proportional to distance
High-power 940 nm IR LED + sensitive phototransistor pair
Effective angle: ~35°
On-board LM393 comparator + power & detection LEDs
Detection distance adjustable with precision trimmer
Works reliably under ambient light up to 1000 lux
3-pin interface: VCC, GND, OUT (digital) + AO pad
3.3 V – 5 V compatible

SKU: RK29041 Category: Electronics Components

Description
Reviews (0)

Robokreeda Infrared (IR) Obstacle Avoidance Sensor Module

Highly responsive IR proximity sensor – perfect for line-following robots, edge detection, object counters, smart doors, and Arduino/Raspberry Pi/ESP32 obstacle-avoidance projects.

Key Features

Detects objects 2–30 cm away (adjustable via onboard potentiometer)
Dual output:
- Digital (High/Low) – clean TTL signal with onboard comparator
- Analog (0–5 V) – proportional to distance
High-power 940 nm IR LED + sensitive phototransistor pair
Effective angle: ~35°
On-board LM393 comparator + power & detection LEDs
Detection distance adjustable with precision trimmer
Works reliably under ambient light up to 1000 lux
3-pin interface: VCC, GND, OUT (digital) + AO pad
3.3 V – 5 V compatible

Technical Specifications

Operating Voltage: 3.3–5 V
Current Consumption: ~25 mA
Detection Range: 2–30 cm (adjustable)
Response Time: < 2 ms
Board Dimensions: 32 × 14 × 10 mm

Applications

Line follower & maze-solving robots
Obstacle-avoiding cars
Conveyor belt object counters
Automatic soap dispensers & smart taps
Security & proximity alarms

Package Includes

1 × Robokreeda IR Obstacle Sensor Module

Detect obstacles instantly and reliably — the Robokreeda IR Sensor is every robot builder’s favorite for fast, accurate, and affordable proximity sensing!
