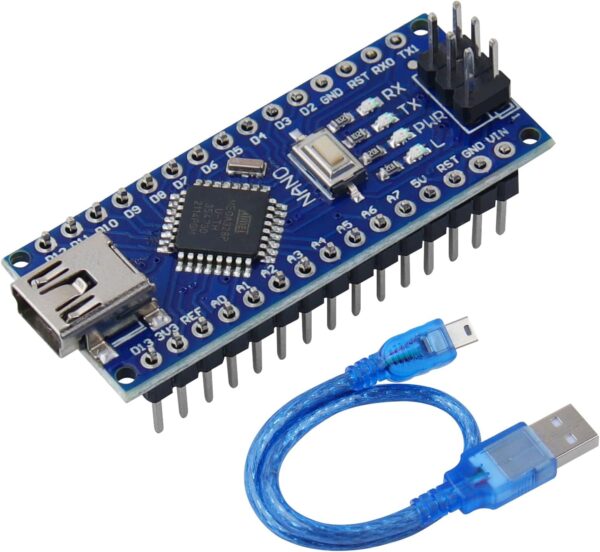

Robokreeda Compatible Arduino Nano V3.0 (CH340 + ATmega328P) with Free USB Cable

Name: Robokreeda Compatible Arduino Nano V3.0 (CH340 + ATmega328P) with Free USB Cable
SKU: RK29030
Availability: InStock

₹470.82

The most popular compatible Arduino board – now bundled with a high-quality Mini-USB cable. Perfect for breadboard projects, robotics, wearables, IoT, and permanent embedded applications.

Key Features

ATmega328P microcontroller (pre-loaded with latest UNO bootloader)
CH340 USB-to-Serial chip (driver-free on Windows 11/10, macOS, Linux)
14 digital I/O pins (6 PWM)
8 analog inputs (10-bit ADC)
32 KB Flash, 2 KB SRAM, 1 KB EEPROM
16 MHz ceramic resonator
Mini-USB port (direct plug-and-play)
ICSP header for bootloader burning
Two extra analog pins (A6 & A7) not available on UNO
Breadboard-friendly 30-pin layout

SKU: RK29030 Category: Electronics Components

Description
Reviews (0)

The most popular compact Arduino board – now bundled with a high-quality Mini-USB cable. Perfect for breadboard projects, robotics, wearables, IoT, and permanent embedded applications.

Key Features

ATmega328P microcontroller (pre-loaded with latest Arduino UNO bootloader)
CH340 USB-to-Serial chip (driver-free on Windows 11/10, macOS, Linux)
14 digital I/O pins (6 PWM)
8 analog inputs (10-bit ADC)
32 KB Flash, 2 KB SRAM, 1 KB EEPROM
16 MHz ceramic resonator
Mini-USB port (direct plug-and-play)
ICSP header for bootloader burning
Two extra analog pins (A6 & A7) not available on UNO
Breadboard-friendly 30-pin layout

Technical Specifications

Operating Voltage: 5 V
Input Voltage: 6–20 V (VIN) or 5 V (USB)
Digital I/O Current: 40 mA per pin
Dimensions: 45 × 18 mm
Weight: 7 g

Package Includes

1 × Robokreeda Arduino Nano V3.0 Board (CH340)
1 × Robokreeda Mini-USB Cable (White – 50 cm) – premium shielded cable for stable uploads
