Measure the value of water flow using water flow sensor and DC water pump 12 V interfacing with Arduino uno

KIT INCLUDES:

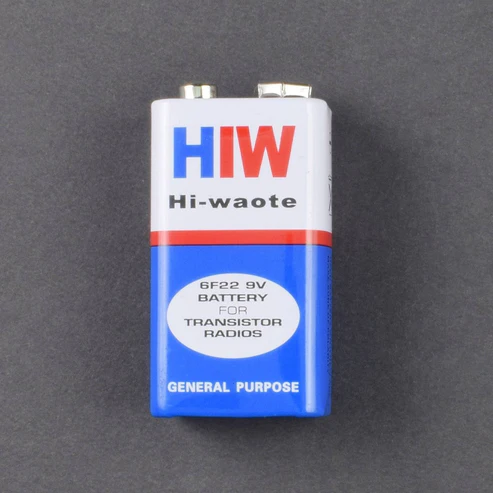

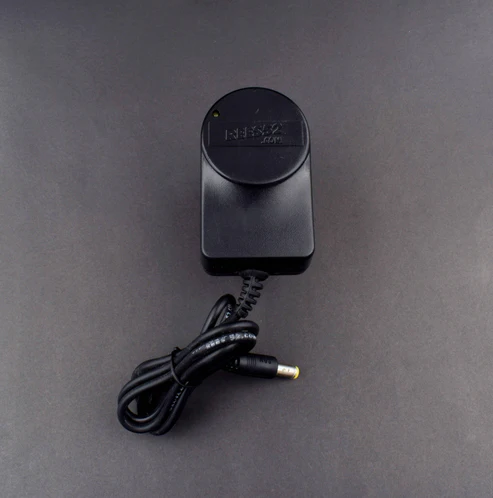

HARDWARE REQUIRED

Name: Measure the value of water flow using water flow sensor and DC water pump 12 V interfacing with Arduino uno
Brand: Robokreeda
SKU: 3548
Price: 1886.82 INR
Availability: InStock
Rating: 5 (1 reviews)

SPECIFICATIONS

**16*2 LCD DISPLAY**

LCD Display Mode: STN, Positive, Transflective
Display Color: Deep Blue/ Yellow Green
Viewing Angle: 6H
Driving Method : 1/16 duty, 1/5 bias
Back Light : Yellow-Green LED backlight
Outline Dimension: 803615.8 MAX

CAUTIONS

• The LCD panel is made by glass. Any mechanical shock (eg. dropping from high place) will damage the LCD module.
• Do not add excessive force on the surface of the display, which may cause the Display color change abnormally.
• The polariser on the LCD is easily get scratched. If possible, do not remove the LCD protective film until the last step of installation.
• Never attempt to disassemble or rework the LCD module.
• Only Clean the LCD with Isopropyl Alcohol or Ethyl Alcohol. Other solvents (eg.water) may damage the LCD.
• When mounting the LCD module, make sure that it is free form twisting, warping and distortion.
• Ensure to provide enough space(with cushion) between case and LCD panel to prevent external force adding on it, or it may cause damage to the LCD or degrade the display result.
• Only hold the lCD module by its side. Never hold LCD module by add force on the heat seal ot TAB.
• Never add force to component of the LCD module. It may cause invisible damage or degrade of the reliability.
• LCD module could be easily damaged by static electricity. Be careful to maintain an optimum anti-static work environment to protect the LCD module.
• When peeling off the protective film from LCD, static charge may cause abnormal display pattern. It is normal and will resume to nomal in a short while.
• Take care and prevent get hurt by the LCD panel sharp edge.
• Never operate the LCD module exceed the absolute maximum ratings.
• Keep the signal line as short as possible to prevent noisy signal applying to LCD module.
• Never apply signal to the LCD module without power supply.
• IC chip(eg. TAB or COG) is sensitive to the light. Strong lighting environment could possibly cause malfunction. Light sealing structure casing is recommend.
• LCD module reliability may be reduced by temperature shock.

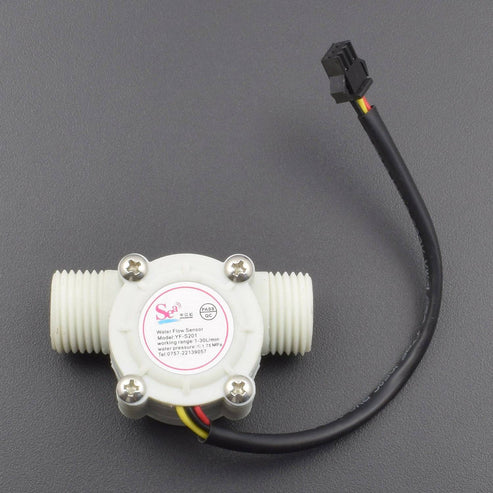

WATER FLOW SENSOR

Sensor Type: Hall effect
Working Voltage: 5 to 18V DC (min tested working voltage 4.5V)
Max current draw: 15mA @ 5V
Output Type: 5V TTL
Working Flow Rate: 1 to 30 Liters/Minute
Working Temperature range: -25 to +80℃
Working Humidity Range: 35%-80% RH
Accuracy: ±10%
Maximum water pressure: 2.0 MPa
Output duty cycle: 50% +-10%
Output rise time: 0.04us
Output fall time: 0.18us
Flow rate pulse characteristics: Frequency (Hz) = 7.5 * Flow rate (L/min)
Pulses per Liter: 450
Durability: minimum 300,000 cycle

SOFTWARE REQUIRED

Arduino IDE ( programmable software for Arduino boards )

You can download the software from this link : https://www.arduino.cc/en/Main/Software

PIN DESCRIPTION

10K POTENTIOMETER

**16*2 LCD DISPLAY**

WATER FLOW SENSOR

CIRCUIT DESCRIPTION

Flow sensor Yellow Wire is output and it gives pulses in proportion with flow.

Flow Sensor Connections

Yellow — Pin 2

Red — +5V

Black — GND

LCD Connections

LCD RS pin to digital pin 12

LCD Enable pin to digital pin 11

LCD D4 pin to digital pin 6

LCD D5 pin to digital pin 5

LCD D6 pin to digital pin 4

LCD D7 pin to digital pin 3

LCD R/W pin to ground

1K resistor:

One end to ground

Another end to LCD VO pin (pin 3)

CODE

click to see the code

https://docs.google.com/document/d/e/2PACX-1vQp-DYSluOk_Q_PVx5ZkdDL9RjJiDOpfbo7XQfNN5CS-92FbX_3lrSKXbf6x1Opb_DuVEgHM5OqT4Of/pub

WORKING

1. Blow air or allow water flow through the sensor
2. Observe the reading on LCD or Serial Monitor
3. Readings get updated at every 1 Sec

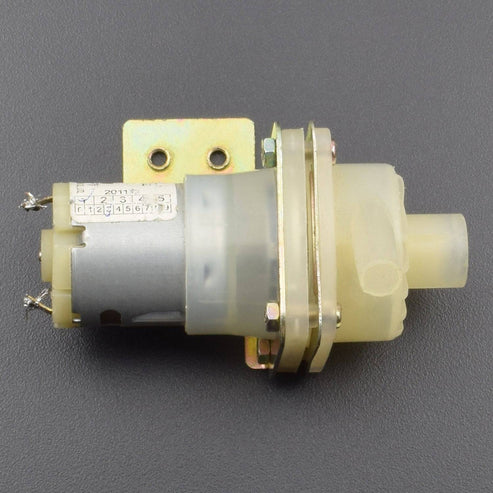

HERE we connect the water flow pump 12 dc motor use for flow the water between the water flow sensor you see the result on lcd 16*2
