Make a Radio Car using 434 MHz RF Link Transmitter receiver kit

Out of stock

Category: Robot Car Kits & Accessories Tags: 434 MHz RF Link Transmitter receiver kit, Radio Car

Description
Reviews (0)

434 MHz RF Link Transmitter receiver kit

Frequency 434 MHz
Transmitter supply voltage: 3~12V.
Receiver Supply voltage: 5V
Receiver IF frequency: 500 kHz
Receiver Sensitivity: -105dBm
Receiver Supply current: 2.3mA
Output power: 4~16dBm
Operating Voltage: 5 Volts

HARDWARE REQUIRED

1x Voltage Regulator 7805
2x 1N4001 Diode
1x HT12E Encoder
1x HT12D Decoder
1 x 434MHz RF Link Transmitter Receiver kit
2x 1K Resistor
2x 3.3K Resistor
2x 47K Resistor
2x 1M Resistor
1X L293D Motor Driver IC
2x Electrolytic Cap 16V 100uF
4x 5mm LED
2x DPDT Rocker switch

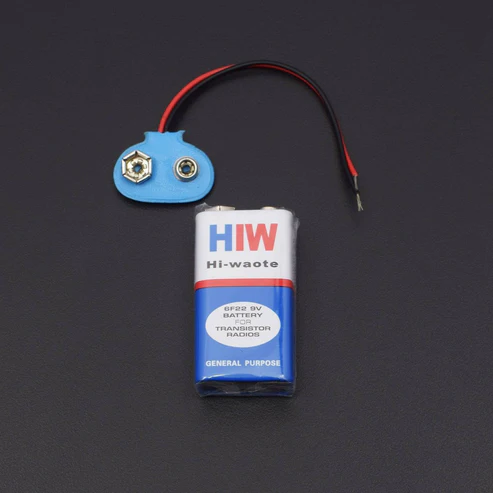

1x 9V Battery Clip
1x 9V Battery
1x Plastic Enclosure
1x Robot 3-wheel Chassis kit
1x SPST Rocker Switch
1x Hook-Up Wires AWG22 Solid
1x 12V lithium-ion battery

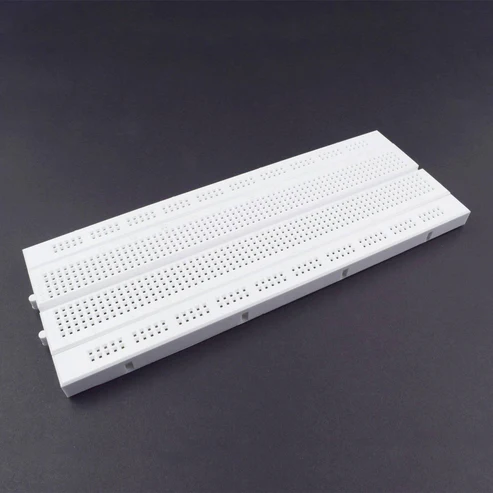

1x breadboard (400pins)
1Xbreadboard (800 pins)

SPECIFICATIONS

434 Mhz Transmitter Reciever Kit

Frequency 434 MHz
Transmitter: Saw filter based ASK hybrid transmitter
Transmitter supply voltage: 3~12V.R
receiver: ASK superheterodyne receiver with PLL synthesizer and crystal oscillator.
Receiver Supply voltage: 5V
Receiver IF frequency: 500 kHz
Receiver Sensitivity: -105dBm
Receiver Supply current: 2.3mA
Output power: 4~16dBm
Turn on time: 20mS from power is switched on.
Data rate 200bps to 3Kbps depending on the supply.
Operating voltage: 5 Volts

PIN DESCRIPTION

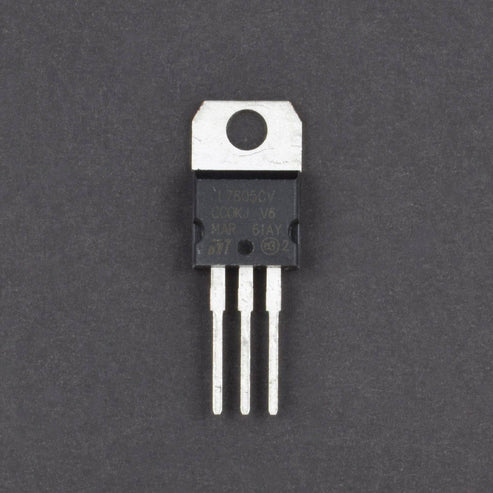

Voltage Regulator 7805

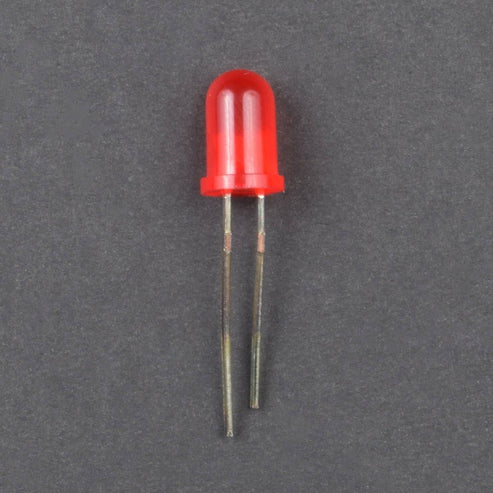

Led

Electrolytic Capacitor

L293DE Motor Driver IC

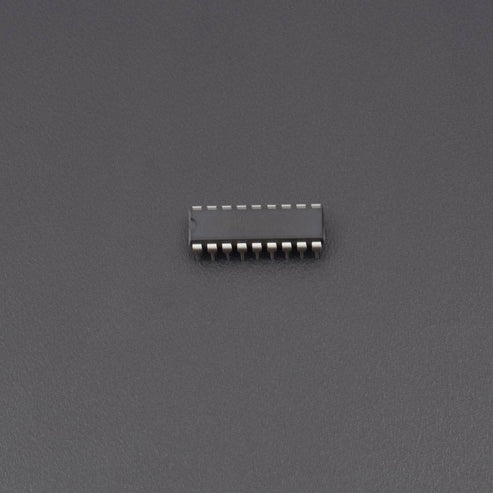

HT12D Decoder IC

HT12E Encoder IC

434 Mhz Transmitter Receiver Kit

Transmitter PCB Layout

Receiver PCB layout

HOW TO MAKE REMOTE

Cut the Parts as given in picture above:

Remote will be shown like this

Connection made as given in picture above for DPDT Switch

CIRCUIT CONNECTION

Switch Connection

Transmitter (Remote Controller) connection

Connect Pin 1 to 9 and pin 14 to the ground of HT12E IC
Connect pin 16 and 15 via 1M resistor of HT12E IC
Connect Pin 17 of HT12E to data pin of RF link transmitter and pin 18 to the +5v ( Positive rail on breadboard )
Connect pins 10,11,12,13 to the DPDT Rocker switch (s2 and s3 as shown in the photo.
Connect Pin 1 of RF link transmitter to GROUND and pin 3 (VCC) to +5v and connect antenna to pin 4.
Connect the ground pin of 7805 voltage regulator to the ground ,Vin to switch s1 one point and other point to 9v battery then c1(100uf)’s positive Vin and negative to ground and then Vo to Positive rail and c2 capacitor. Positive to Vo and negative to gnd.
1k resistor one terminal to ground and other terminal to negative of led and positive of led to the positive rail.

Receiver (RC car) Connection

Place the decoder IC(HT12D) the motor driver IC and the RF link receiver to the breadboard
Connect the 1 to 9 pins of decoder IC to the ground
Pin ten of ht12d goes to pin 2 of L293d, pin 11 goes to pin 7, pin 12 goes to pin 10 and pin 13 goes to pin 15.
Pin 14 of ht12d goes to pin 2(data) of RF link receiver.
Pin 15 is connected to pin 16 of HT12D via 50k resistor.
Pin 17 is connected to 1k resistor one terminal and other terminal of resistor to the -ve of led and the positive of led to the +5v rail of breadboard.
Pin 18 is also goes to +5v rail.
Pin no. 1,8,9,16 of L293D goes to the +5v rail.
Pin no. 4,5,12,13 to the ground.
Pin 3 and 6 connected to motor m1 and pin no. 11 and 14 to the motor m2.
All three ground pins in the RF link receiver goes to GND rail,vcc1 and vc2 to +5v rail and antenna is connected to
Pin 8(ant).
Now connect one 1N4001 Diode to breadboard connect Positive of diode to the one point of SPST Rocker Switch and other point of
Switch to the 12v li ion battery positive point.
Negative point of diode to the positive rail.
