Make a DPDT Switch Controlled Robot Car

Name: Make a DPDT Switch Controlled Robot Car
Brand: Robokreeda
SKU: 3786
Price: 1045.48 INR
Availability: InStock
Rating: 5 (1 reviews)

Category: Robot Car Kits & Accessories Tags: DPDT Switch Controlled, Robot Car

KIT INCLUDED:

DPDT Switch Box – 1
DPDT switch with 6 terminals – 4
9V Battery with Snapper – 2
Multistand Wire – 1
Smart Robot Car Chassis – 1

HARDWARE REQUIRED

SPECIFICATIONS

Double Pole Double Throw Switch Robot Module

A DC motor has 2 terminals and a DPDT switch has 6 terminals.
They are named as A, B, C, D, E, F.
The power supply of 9V would be attached with the module.
It can be executed in two rotations ,i.e, reverse rotation and forward rotation.

CIRCUIT CONNECTION

Connect a wire between ‘A’ and ‘F’ terminals.
Connect a wire between ‘B’ and ‘E’ terminals. (you can permanently solder the wire as shown in fig below)
Connect the dc motor between terminals ‘A’ and ‘B’
Connect a battery source between terminals ‘C’ and ‘D’

WORKING

In this particular module the forward push on the switch, will make motor move in forward direction and back ward push, will make the motor move in backward direction. When the switch is at centre the motor will remain off state.

DPDT to Motor Connection

The point ‘A’ is connected to point ‘F’ so you can solder a wire between point ‘A’ and ‘F’ .
A motor is connected to DPDT switch between points ‘A’ and ‘B’ and power supply is connected between points ‘C’ and ‘D’ .
Similarly points ‘B’ and ‘E’ are connected .
As shown in figure above.

Reverse Rotation

When the switch is pushed in reverse direction the point ‘C’ is connected to point ‘E’ and also point ‘D’ is connected to point ‘F’ .
Thus the motor moves in reverse direction because now the battery is connected in reverse connection to the motor.
The equivalent circuit is provided in figure above.

Forward Rotation

When the switch is pushed in forward direction the point ‘A’ is connected to point ‘C’ and also point ‘B’ is connected to point ‘D’.
Thus the motor moves in forward direction because now the battery is connected in forward connection to the motor.
The equivalent circuit is provided in figure above.

Battery operated	Yes , 2 nos 9V battery included and 3xAA batteries required

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Make a Line Follower Robot Car Using L293d Motor Driver IC And BO Motor Dual Shaft

-21%

Related products

Robot Car Kits & Accessories

DIY D2-1 Intelligent Line Follower Car Kit DIY Smart Tracking Robot Car Electronic Kit With Reduction Motor Set

-58%

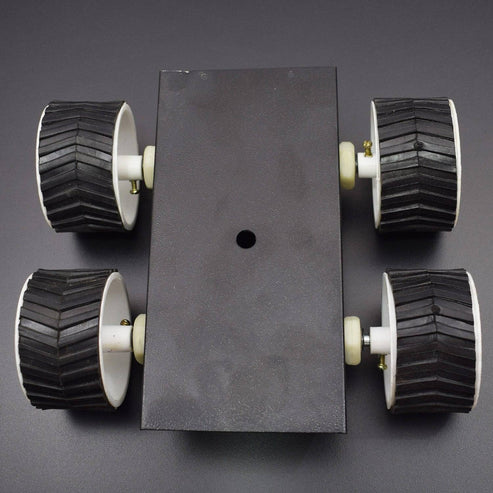

4 Wheel Robotic Platform DIY with DC gear motor, Chassis With Wheels

Out of Stock

Robot Car Kits & Accessories

4 Wheel Robotic Platform DIY with DC gear motor, Chassis With Wheels

-39%

Add to cart

Robot Car Kits & Accessories

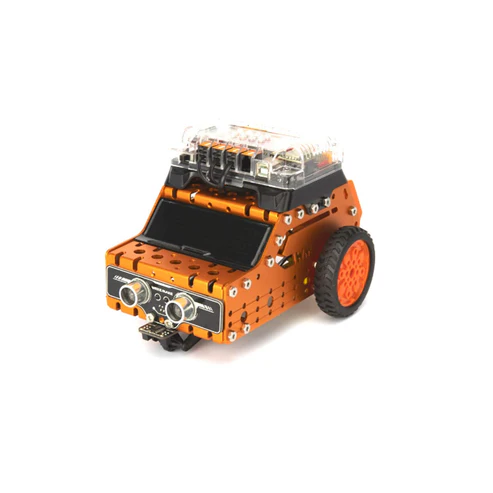

Weeemake WeeeBot 3-in-1 STEM Robot Kit

-20%

4-in-1 Smart Sensing Robot Car DIY STEM Education Multifunctional Educational Robot Toy Voice-Controlled Line-Following Infrared Touch Sensing Robot Smart Robot Car: Voice, Line, Infrared, Touch Sensors

Add to cart

Robot Car Kits & Accessories

4-in-1 Smart Sensing Robot Car DIY STEM Education Multifunctional Educational Robot Toy Voice-Controlled Line-Following Infrared Touch Sensing Robot Smart Robot Car: Voice, Line, Infrared, Touch Sensors

-25%

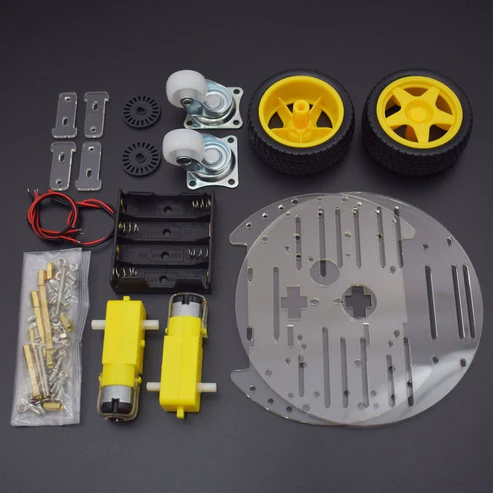

Smart car chassis 2wd / robot tracing strong magnetic motor car rt-4 / avoidance car with code disk for arduino
