make a digital clock using 4 bit TM1637 Led display module and DS3231 RTC module interfacing with Arduino uno

Name: make a digital clock using 4 bit TM1637 Led display module and DS3231 RTC module interfacing with Arduino uno
Brand: Robokreeda
SKU: 3150
Price: 1121 INR
Availability: InStock
Rating: 5 (1 reviews)

Category: Arduino Compatible Kits Tags: 4 bit TM1637, Arduino Uno, digital clock, DS3231 RTC Module, Led display module

KIT INCLUDES:

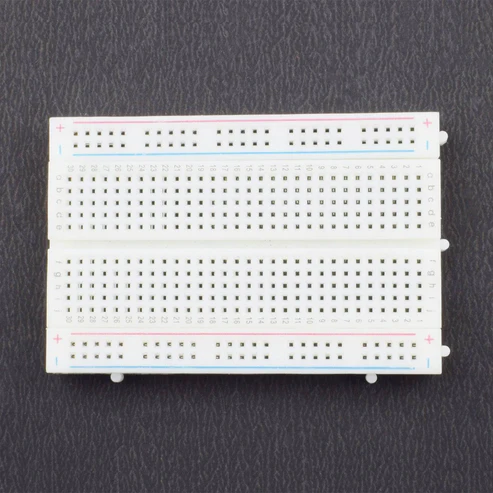

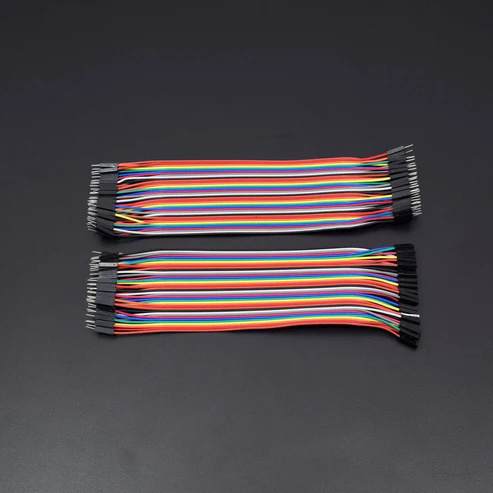

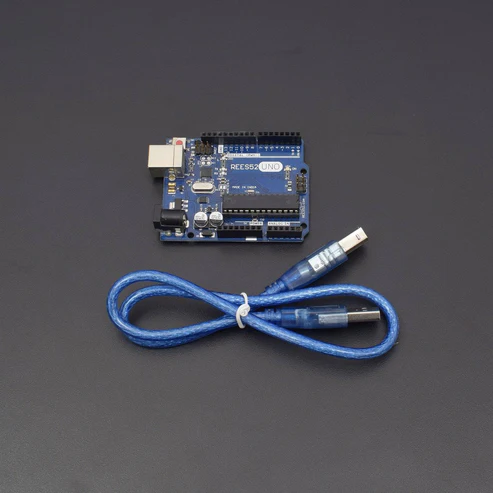

HARDWARE REQUIRED

SOFTWARE REQUIRED

Arduino IDE 1.8.5 (programmable platform for Arduino)

Click To Download :https://www.arduino.cc/en/Main/Software

SPECIFICATIONS

DS3231 RTC MODULE

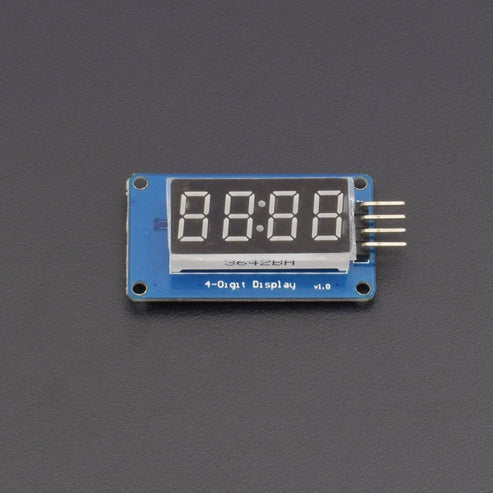

TM1637 display is a 4-digit seven segment display.TM1637 is a chip which is used for driving the 7-segment display.TM1637 has finds its applications on Digital Clock, Programmable Timer, Digital Thermometer, Decimal Counter, Stopwatches.

The TM1637 display has four pins:

CLK (Clock)

DIO (Data I/O)

Vcc

GND

As we know that Vcc and Gnd pin goes to 5v and Gnd in the Arduino board. The CLK and DIO pins should be connected to any of the digital pins on the Arduino board.

4 BIT TM1637 LED DISPLAY MODULE

Operating Voltage	3.3 V-5.5 V DC
Chip	DS3231
Pin no.	6
Operating Temperature Ranges	Commercial: 0°C to +70°C
Operating Temperature Ranges	Industrial: -40°C to +85°C
Power Consumption	Low
Accuracy ±2ppm	0°C to +40°C
Accuracy ±3.5ppm	-40°C to +85°C
I2C Interface	Fast (400KHZ)
Digital Temp Sensor Output	±3°C Accuracy

CIRCUIT CONNECTION

Ds3231

Gnd to gnd

Vcc to vcc

Scl to arduino scl

Sda to arduino sda

4digit display

Gnd to gnd

Vcc to vcc

Clk to dig 8

Dio to dig 9

CODE

https://docs.google.com/document/d/e/2PACX1vRuncSCMJyLuw8YFadC0rUx5pgFJXXKvxpYKqufhl0yTbTtgq4IZM-SyVDOevFW8_73ygfx-ZjSllRv/pub

#include

RTC_DS3231 rtc;

#define CLK 8

#define DIO 9

TM1637Display display(CLK, DIO);

void setup () {

display.setBrightness(0xA);

display.setColon(true);

}

void loop () {

DateTime now = rtc.now();

int t = now.hour() * 100 + now.minute();

display.showNumberDec(t, true);

delay(1000);

}

WORKING

In this project we are using 4 digit display that will display clock on that using ds3231 rtc module that will display clock 24 hours on that 4 digit fnd display.

Battery operated	Yes, 1 nos 9V battery included
