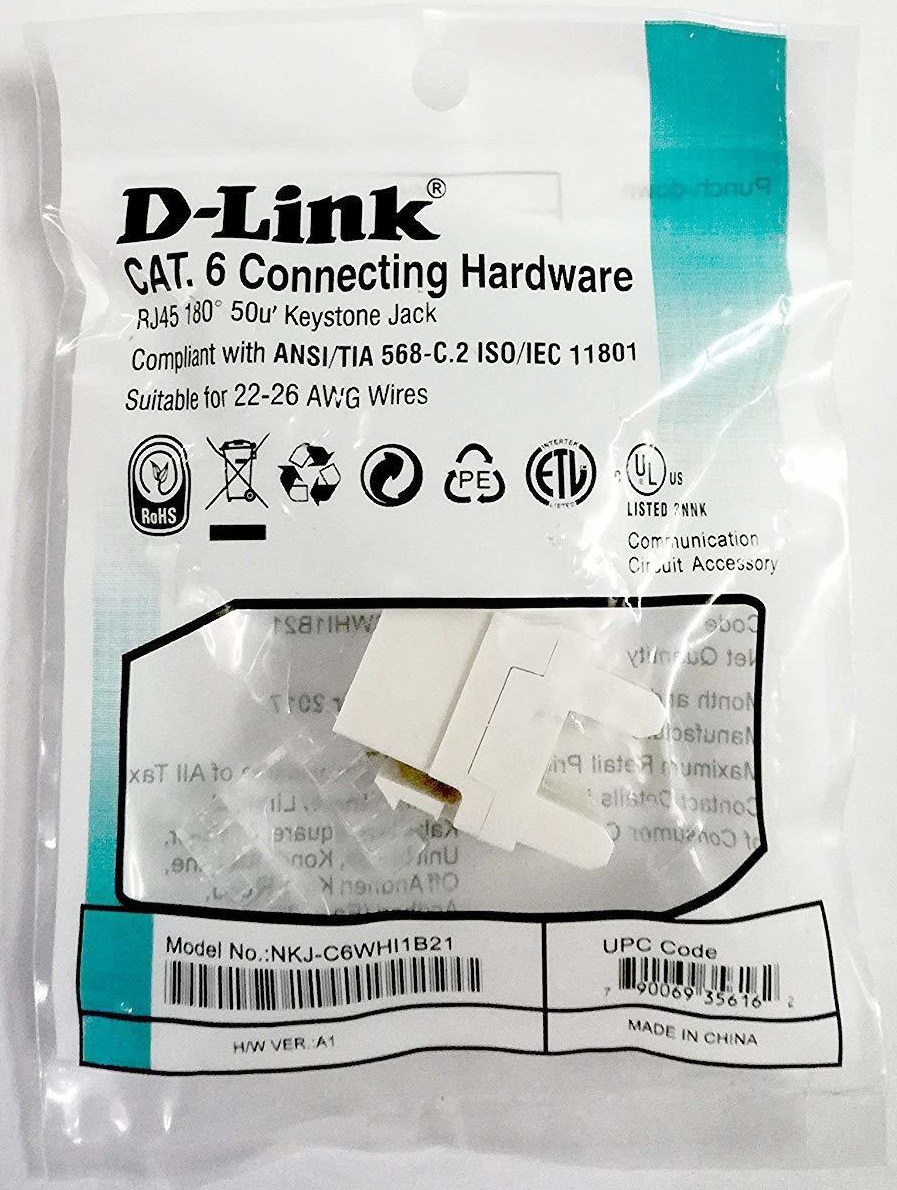

D-Link CAT6 UTP Keystone Jack (90-Degree Punch-Down)

Name: D-Link CAT6 UTP Keystone Jack (90-Degree Punch-Down)
SKU: RK29088
Availability: InStock

₹413.00

D-Link CAT6 UTP Keystone Jack (90-Degree Punch-Down)

Professional-grade, tool-less CAT6 keystone jack for high-speed Gigabit Ethernet networks. Fully compliant with D-Link quality standards and ideal for home, office, or data center structured cabling.

Key Features

Supports CAT6 (Class E) performance – 250 MHz bandwidth, up to 10 Gbps capable over short distances
90-degree IDC punch-down termination (110 or Krone tool compatible)
Tool-less design with color-coded T568A/T568B wiring diagram printed on the jack
Gold-plated 50µ phosphor bronze contacts for maximum conductivity and corrosion resistance
Accepts 23–26 AWG solid or stranded UTP cable
Backward compatible with CAT5e/CAT5 networks
Flame-retardant UL94-V0 polycarbonate housing
Snap-in keystone format – fits all standard wall plates, patch panels, and surface-mount boxes
Dust cap included for protection during installation

SKU: RK29088 Category: Electronics Components

Description
Reviews (0)

D-Link CAT6 UTP Keystone Jack (90-Degree Punch-Down)

Professional-grade, tool-less CAT6 keystone jack for high-speed Gigabit Ethernet networks. Fully compliant with D-Link quality standards and ideal for home, office, or data center structured cabling.

Key Features

Supports CAT6 (Class E) performance – 250 MHz bandwidth, up to 10 Gbps capable over short distances
90-degree IDC punch-down termination (110 or Krone tool compatible)
Tool-less design with color-coded T568A/T568B wiring diagram printed on the jack
Gold-plated 50µ phosphor bronze contacts for maximum conductivity and corrosion resistance
Accepts 23–26 AWG solid or stranded UTP cable
Backward compatible with CAT5e/CAT5 networks
Flame-retardant UL94-V0 polycarbonate housing
Snap-in keystone format – fits all standard wall plates, patch panels, and surface-mount boxes
Dust cap included for protection during installation

Technical Specifications

Standards: ANSI/TIA-568.2-D, ISO/IEC 11801, EN 50173
Insertion Life: ≥ 750 cycles
Operating Temperature: -10°C to 60°C
Dimensions: 37 × 20 × 22 mm

Applications

Gigabit LAN wiring
PoE++ (IEEE 802.3bt) applications
Home theater & smart home networks
Office wall outlets & patch panel terminations
CCTV & IP camera installations

Package Includes

1 × D-Link CAT6 UTP Keystone Jack
1 × Cable tie & dust cap

Get flawless Gigabit performance with the Robokreeda D-Link CAT6 Keystone Jack — the installer’s favorite for clean, fast, and future-proof terminations!
